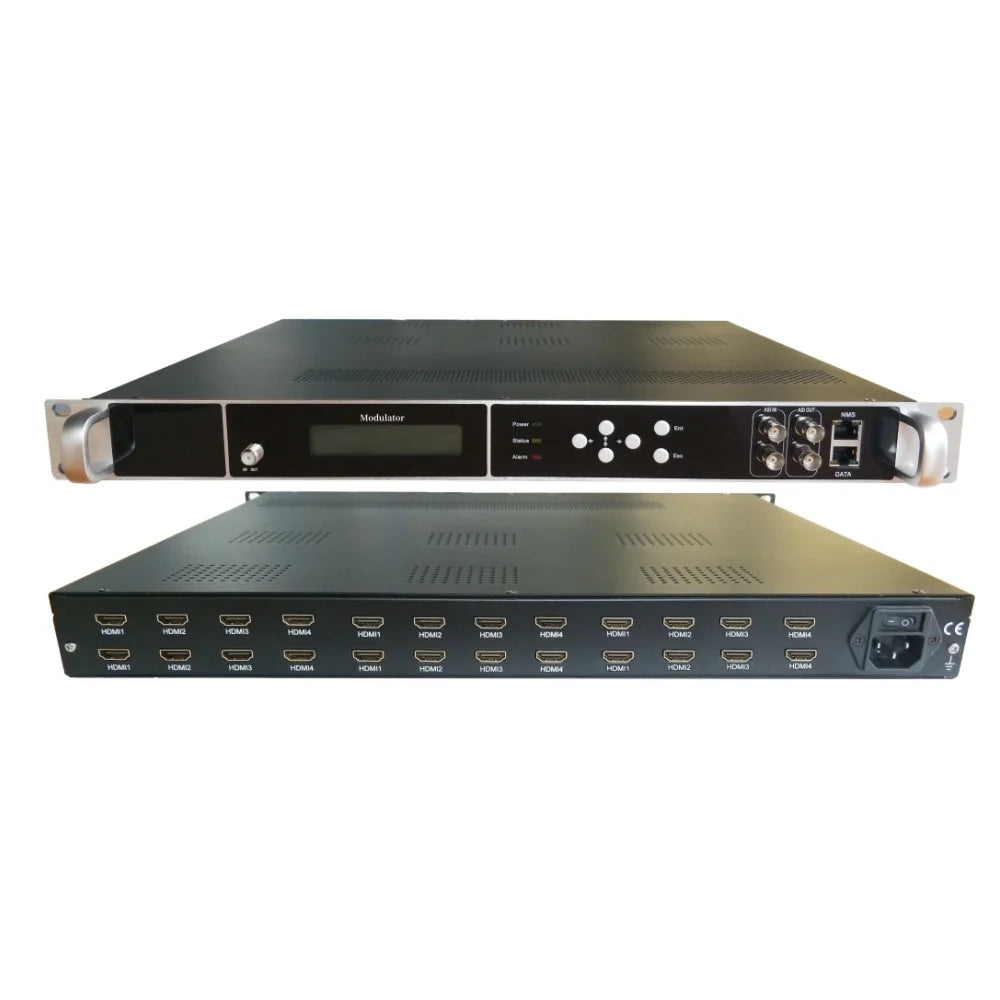

24 HD MI Input 8 Channel DVB-T/ISDBT Output Encoder Modulator 1080p Digital RF Modulation for TV Broadcast And Cable Systems
24 HD MI Input 8 Channel DVB-T/ISDBT Output Encoder Modulator 1080p Digital RF Modulation for TV Broadcast And Cable Systems
Couldn't load pickup availability
SPECIFICATIONS
Application: CATV,IPTV, Digital TV System
Audio encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC v1&v2
Brand Name: CATCAST
Certification: CE,FCC
Function: Net Work Management(WEB)
High-concerned chemical: None
Input: 24 HD MI+2ASI
Model Number: HPS846IV
Origin: Mainland China
Output: 8 carriers DVB-T RF+2 ASI+IP
Package: Yes
Product name: 24 HD MI to 8 Carriers DVB-T Encoder Modulator
Protocol: UDP RTP
Video encoding: MPEG4 AVC/H.264
DVB-T Output
The device supports DVB-T output, providing a reliable and efficient way to transmit TV signals over RF networks.
Certified Quality
This product comes with CE certification, guaranteeing its compliance with international safety and quality standards.
High Definition Output
The 24 HD MI Input 8 Channel DVB-T Output Encoder Modulator delivers high-definition 1080p output, ensuring clear and crisp TV broadcasts.
Compact and Portable
Its compact size and lightweight design make it easy to install and move around, suitable for various broadcasting environments.
Multiple Input Channels
With 24 HD MI inputs, this modulator can handle multiple channels simultaneously, making it ideal for complex cable systems.
CE Certified
This product bears the CE certification, guaranteeing its compliance with European safety standards for peace of mind.
High Definition Input
Featuring 24 HD MI input, this DVB-T encoder modulator ensures high-quality video transmission for superior TV broadcast experience.
1080p Resolution
Delivering 1080p resolution, the encoder modulator provides crystal-clear images, ideal for high-definition TV broadcasting.
Brand Reliability
Produced by CATCAST, a trusted brand in radio & TV broadcasting equipment, ensuring quality and durability.
8 Channel Capacity
With an 8-channel capacity, the device can handle multiple streams simultaneously, enhancing its efficiency in cable systems.

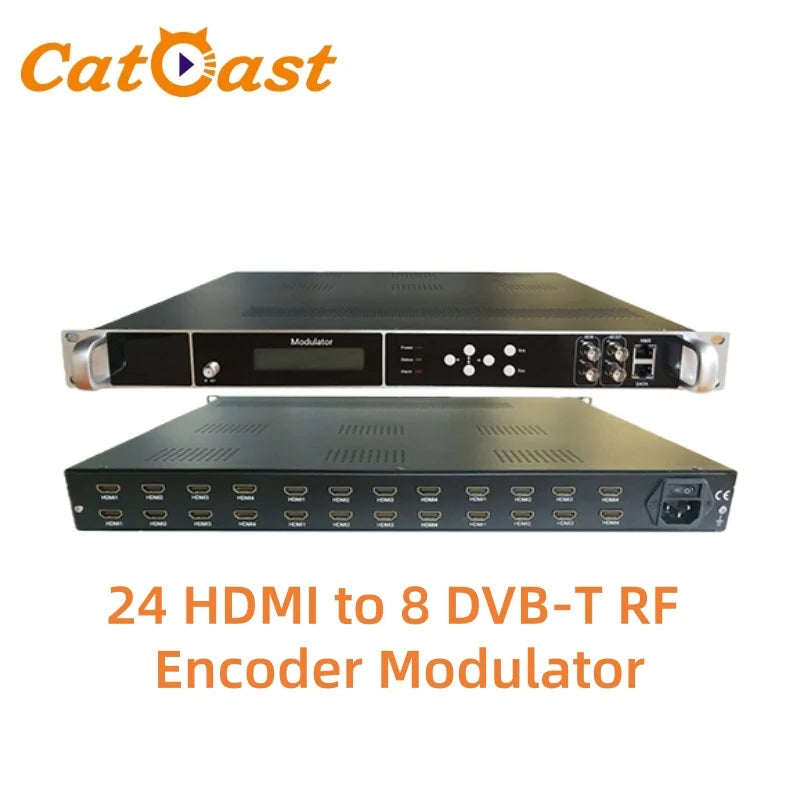

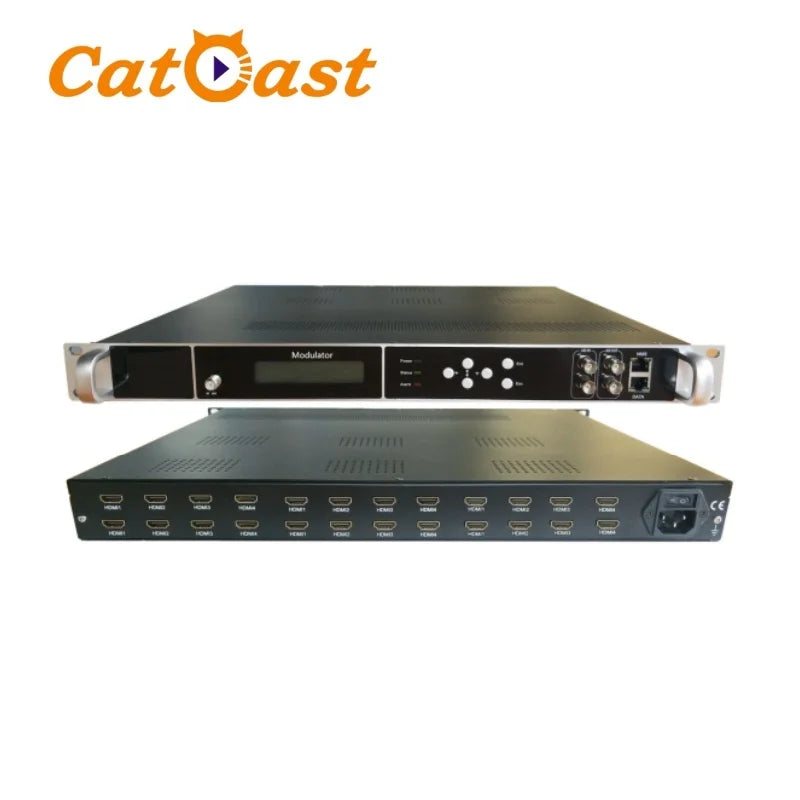

24 HD MI to 8 Carriers DVB-T Encoder Modulator 1080p Digital RF Modulation Encoder Modulator
Our price is not included the customs clearance fee in the buyer's country, the price is only included product and shipping cost. the buyer need to pay the customs clearance fee locally. If any question, please leave message to us, thanks!

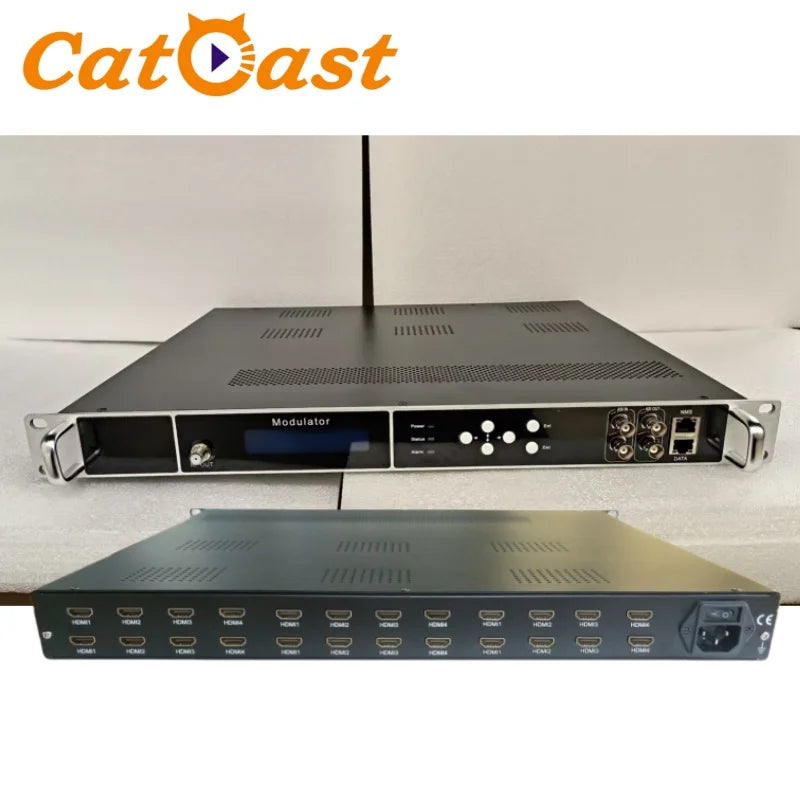

Product Overview

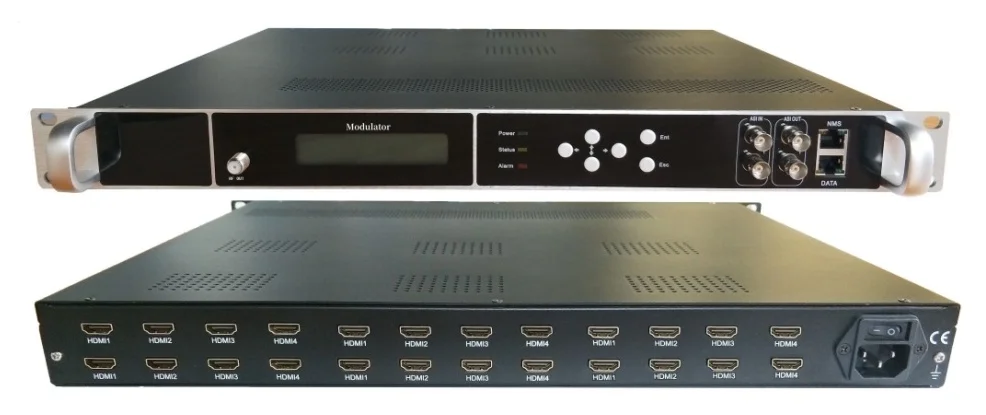

HPS846IV Encoder Modulator is Catcast’s professional high integration devicewhich includes encoding, multiplexing, and modulation. It supports 24 HD MI input, MPEG-4 AVC/H.264 encoding, 2 ASI input and 128 IP input, It supports 8 carries DVB-T RF output , IP output (128 SPTS and 4 MPTS output), and 2 ASI output at the same time.
In conclusion,its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, IPTV live streaming multicast, digital TV broadcasting etc.
Key Features
Support QR code, LOGO, OSD insertion for every local channel
24 HD MI input, support HDCP
8 non-adjacent DVB-T carriers RF
Support MPEG-4 AVC/H.264 video encoding
Support MPEG-1 Layer2, LC-AAC, HE-AAC v1&v2 audio encoding
1000M IP input over UDP protocol, for remux
2 ASI input for remux
IP output over UDP/RTP/RTSP protocol, unicast/multicast
2 ASI independent output as copy of 4MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting, PID pass
LCD、key function, Web-NMS managment

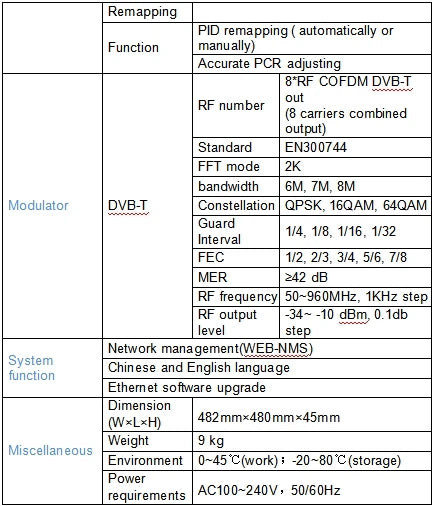

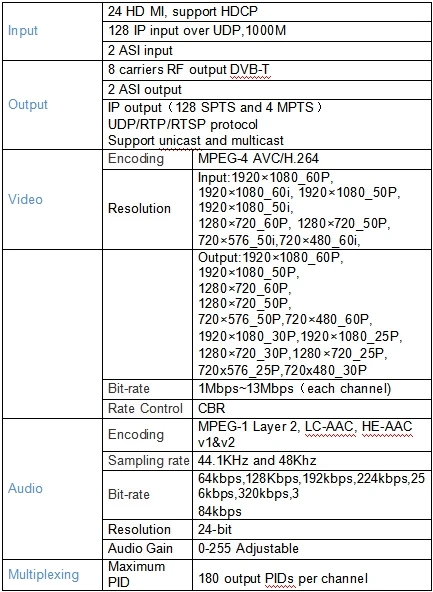

Technical Specification
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Please note: We do not accept specified shipping methods. For example, if you choose DHL for shipping when placing an order, we may choose to ship through Fedex or UPS.
Company Introduction
Catcast Technology Co.,Ltd is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
Why choose us
Payment
We accept alipay here.
All major credit cards are accepted through secure payment processor ESCROW.
Other Policies
12 months Warranty. Buy with confidence!If item is defective in 1 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.
